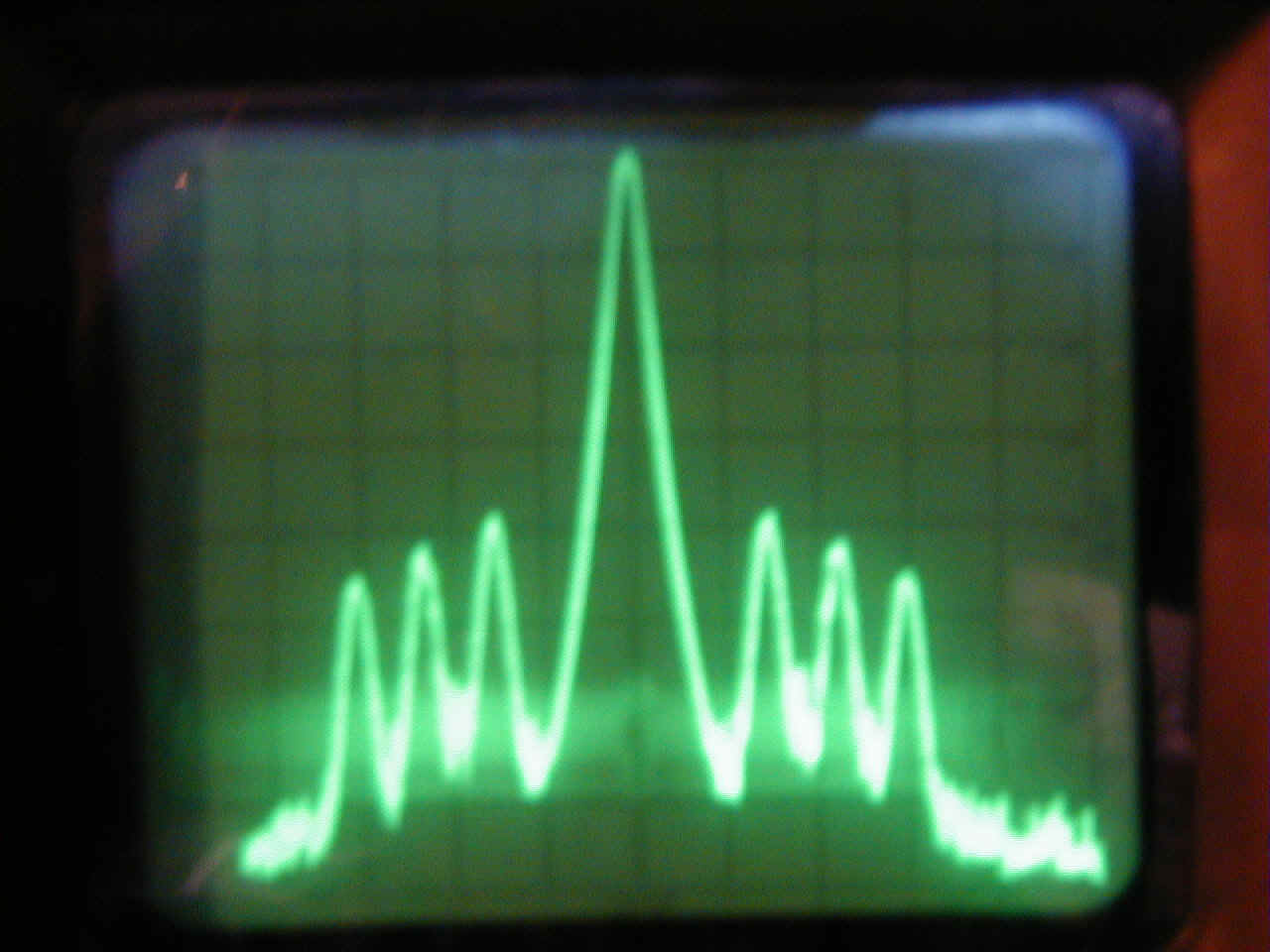

Paragon 1 - Tx Output in "CW" mode at 7051.00 KHz.
Span:    200 Hz/Div
Vertical Scale: 10dB/Div
Resolution Bandwidth: 30Hz
Video Bandwidth: 10 Hz
Sweep Time: 2 seconds

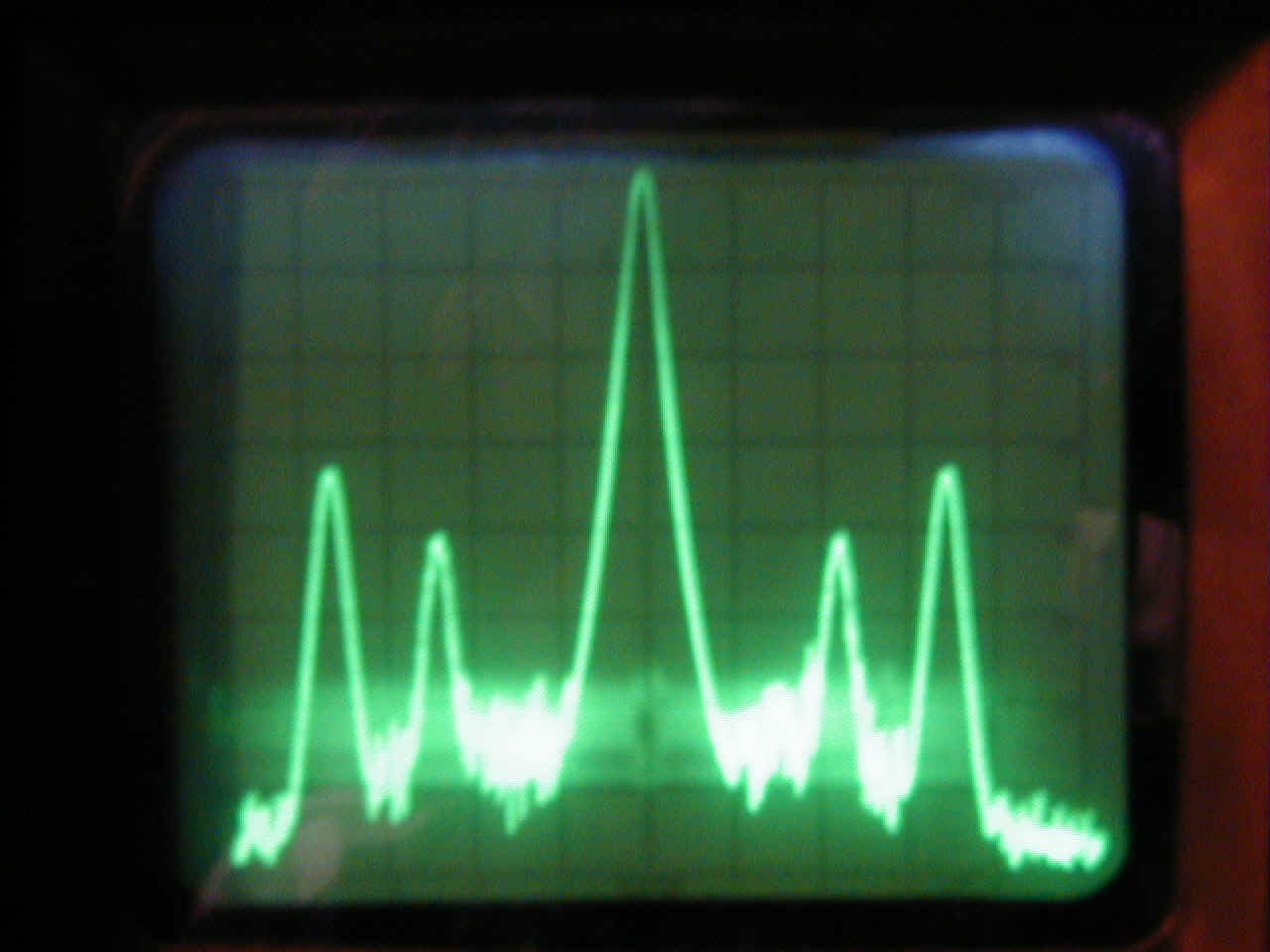

Paragon 1 - Tx Output in "CW" mode at 7050.00 KHz.
Span:    200 Hz/Div
Vertical Scale: 10dB/Div
Resolution Bandwidth: 30Hz
Video Bandwidth: 10 Hz
Sweep Time: 2 seconds

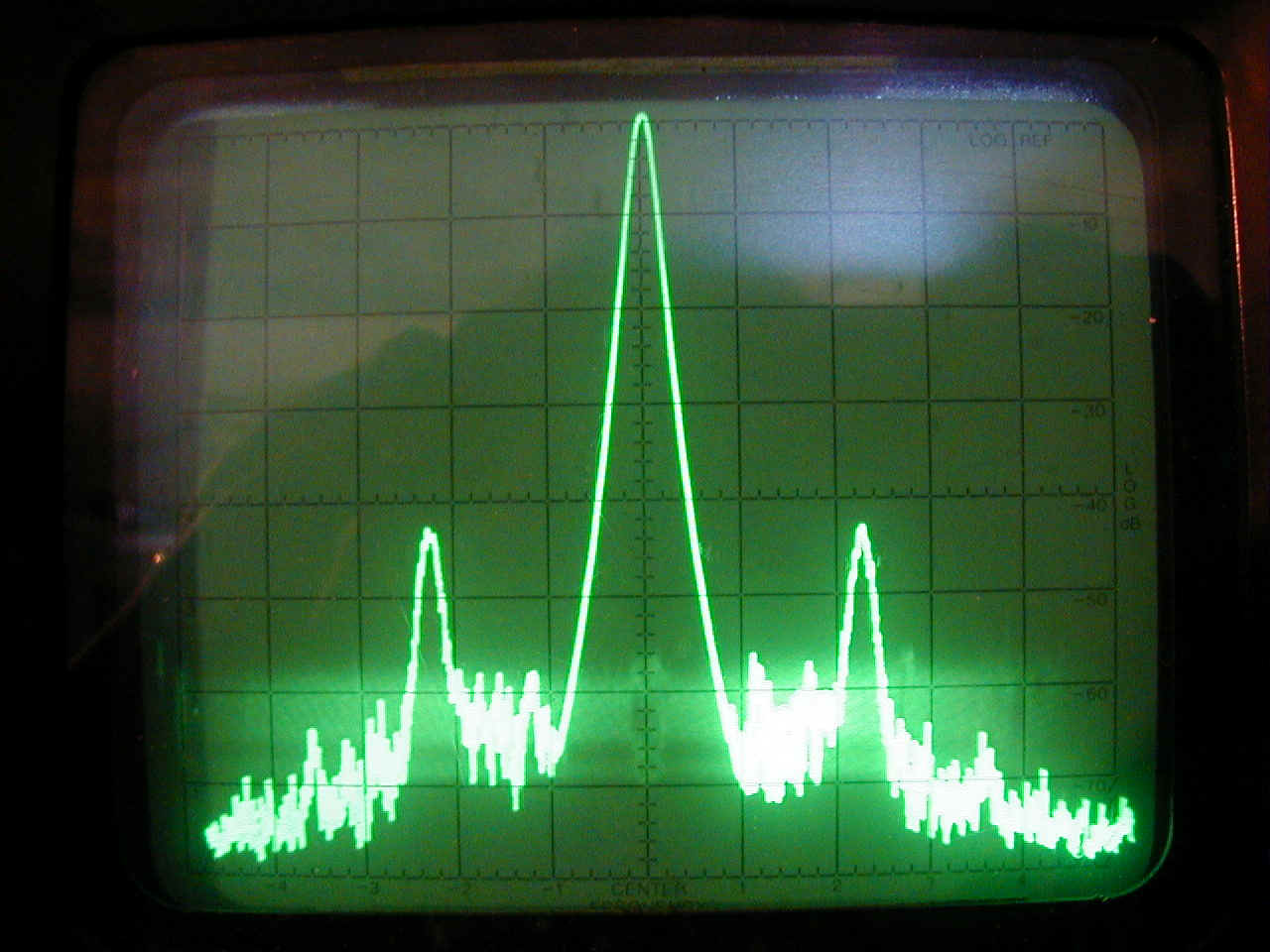

Paragon 1 - Tx Output in "CW" mode at 7057.99 KHz.
Span:    200 Hz/Div
Vertical Scale: 10dB/Div
Resolution Bandwidth: 30Hz
Video Bandwidth: 10 Hz
Sweep Time: 2 seconds

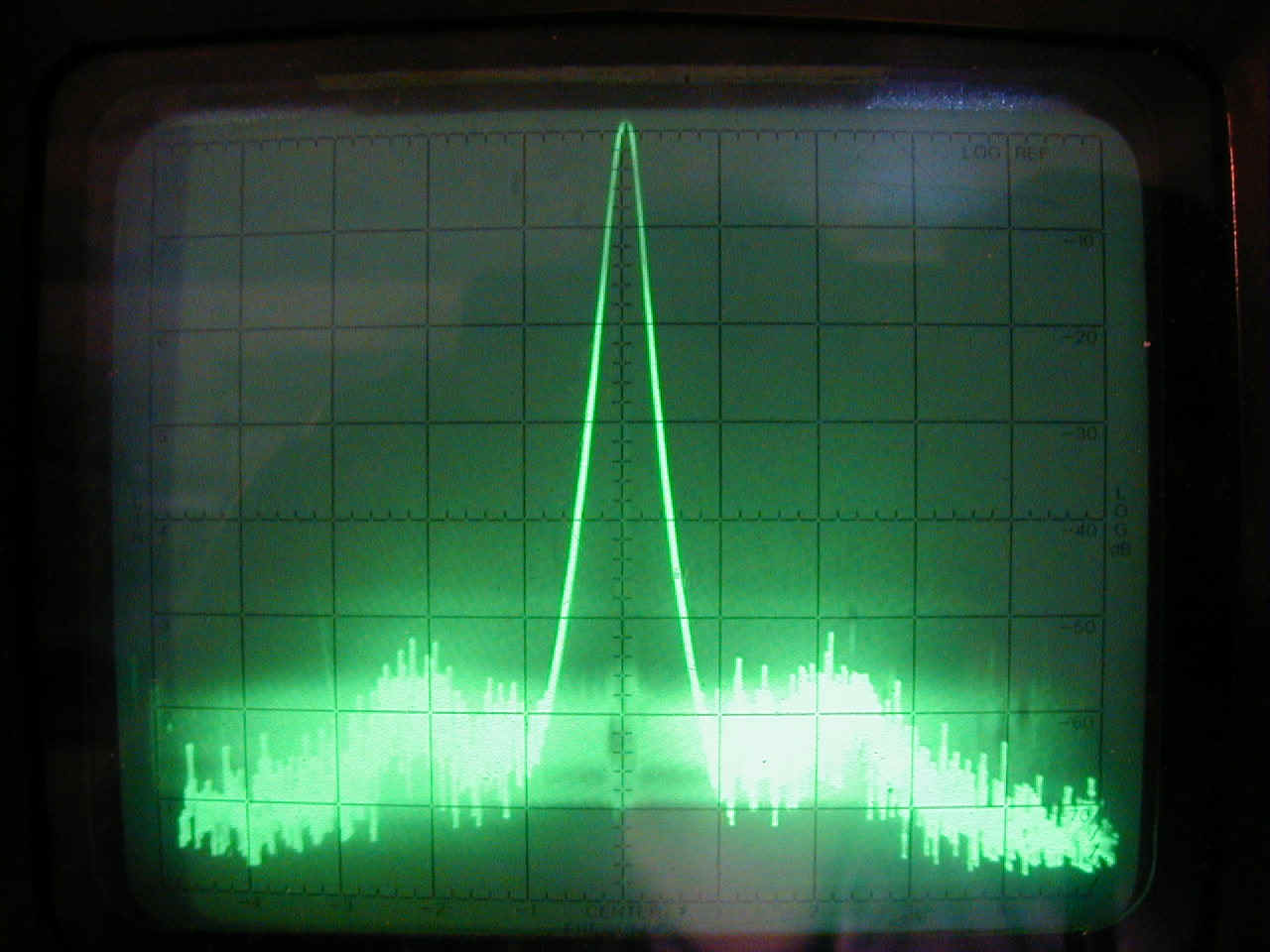

Paragon 1 - Tx Output in "CW" mode at 1813.00 KHz.
Span:    200 Hz/Div
Vertical Scale: 10dB/Div
Resolution Bandwidth: 30Hz
Video Bandwidth: 10 Hz
Sweep Time: 2 seconds
