FT-1000MP MKV Pre-Modification Keying Waveforms

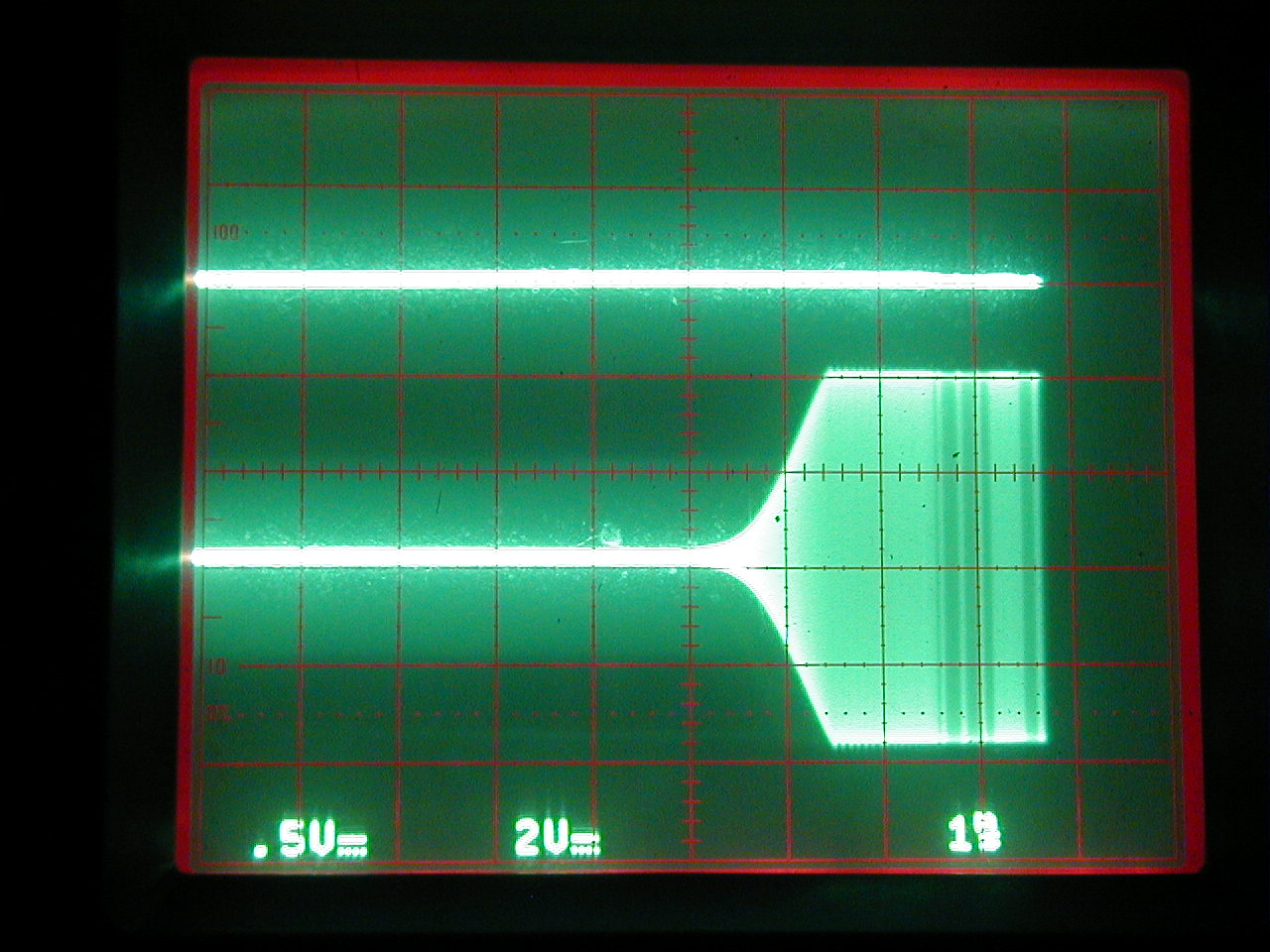

Rising Edge (timbase = 1 ms/div)

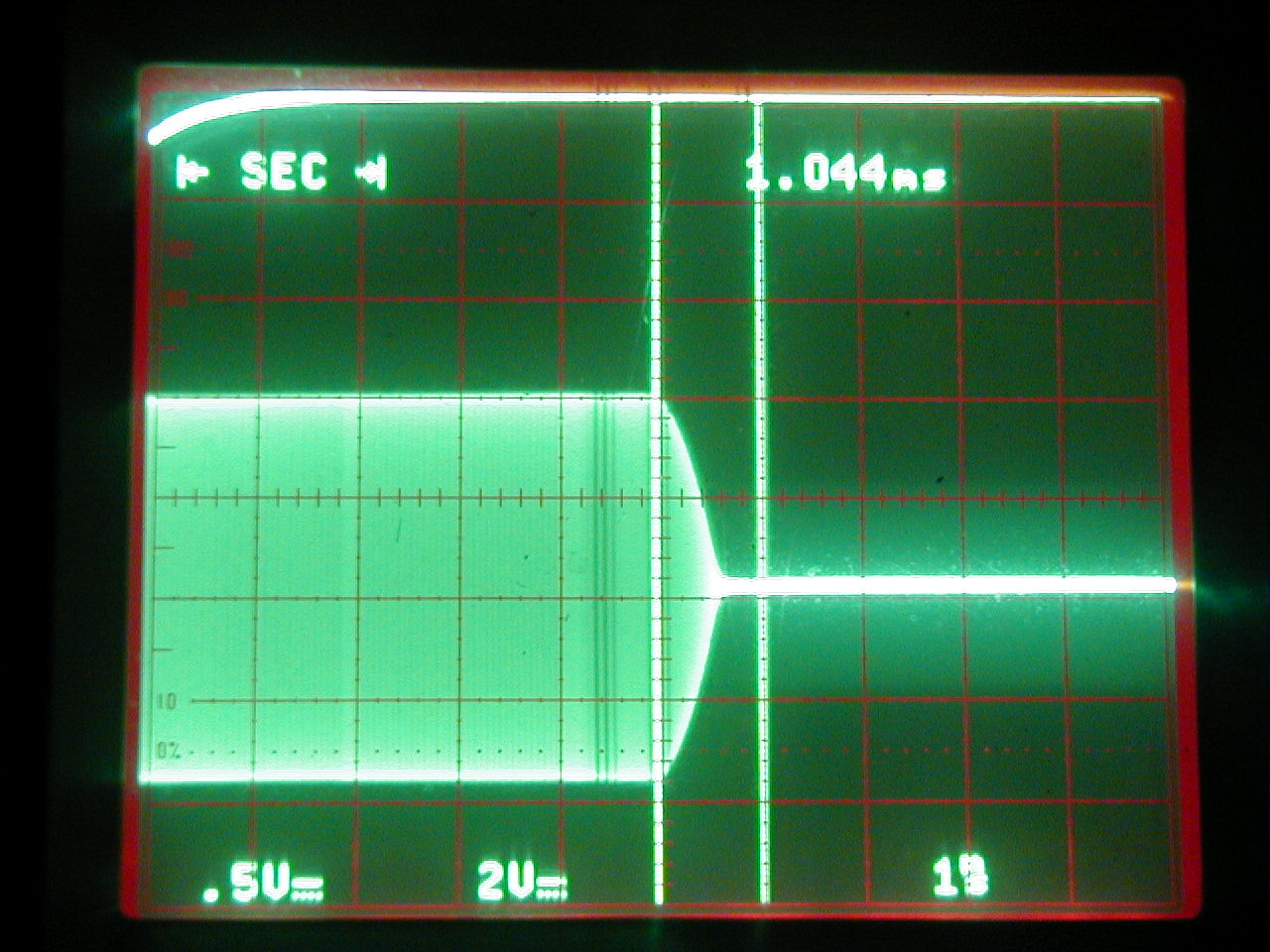

Falling Edge (timbase = 1 ms/div)

FT-1000MP MKV Post-Modification Keying Waveforms

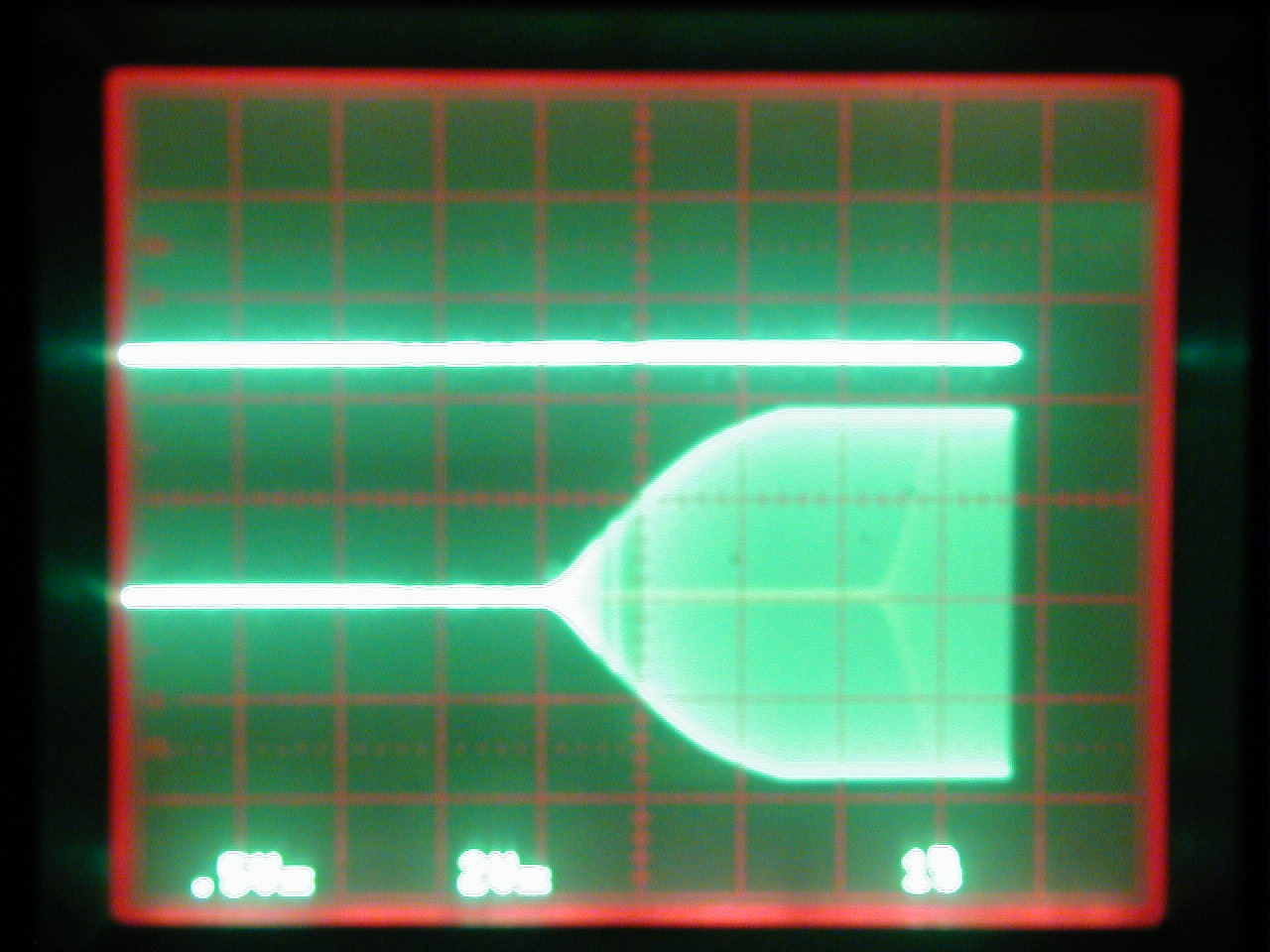

Post-Mod Mid-Word Rising Edge (timbase = 1 ms/div)

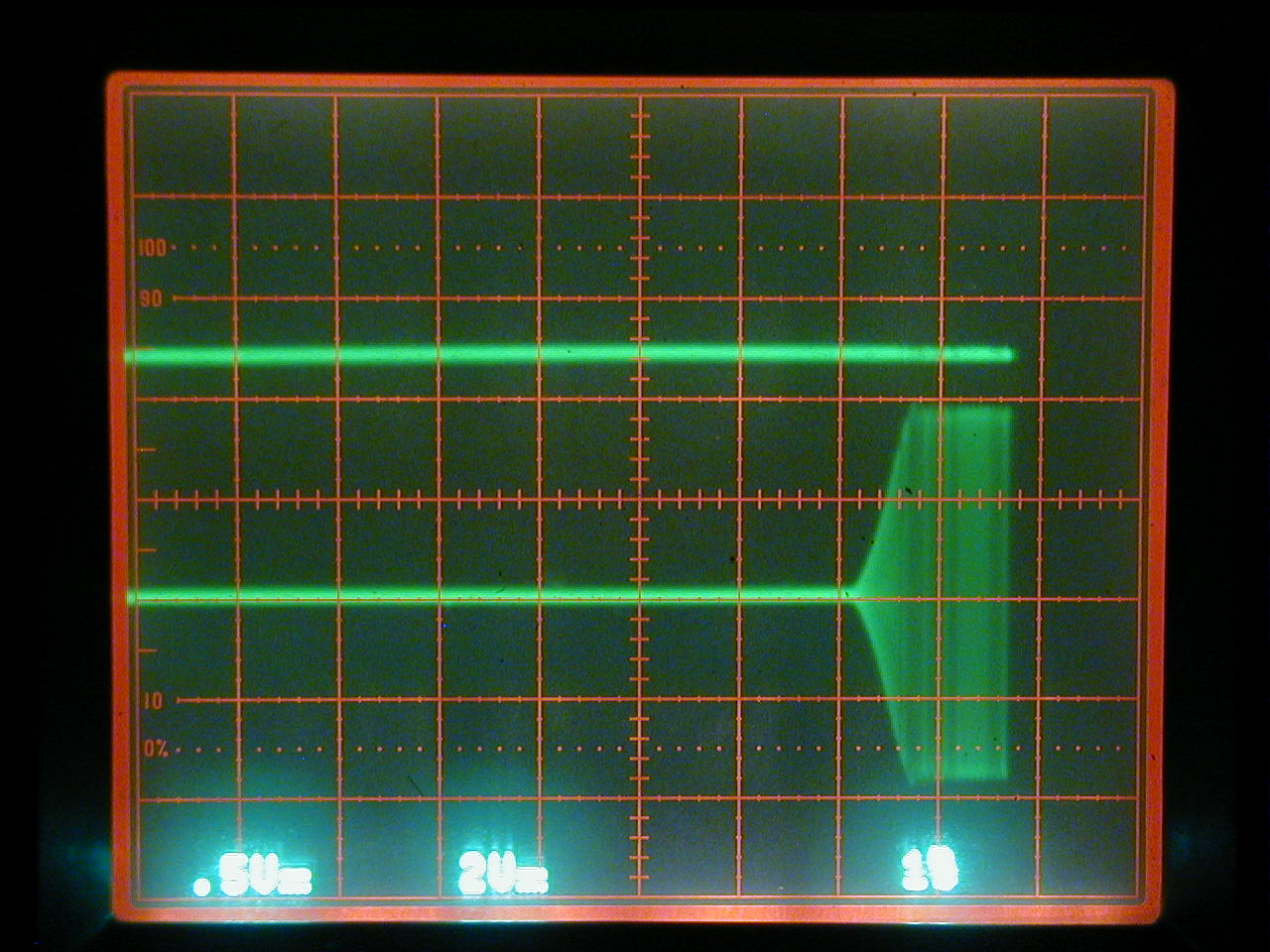

Post-Mod Leading Character Rising Edge (timbase = 1 ms/div)

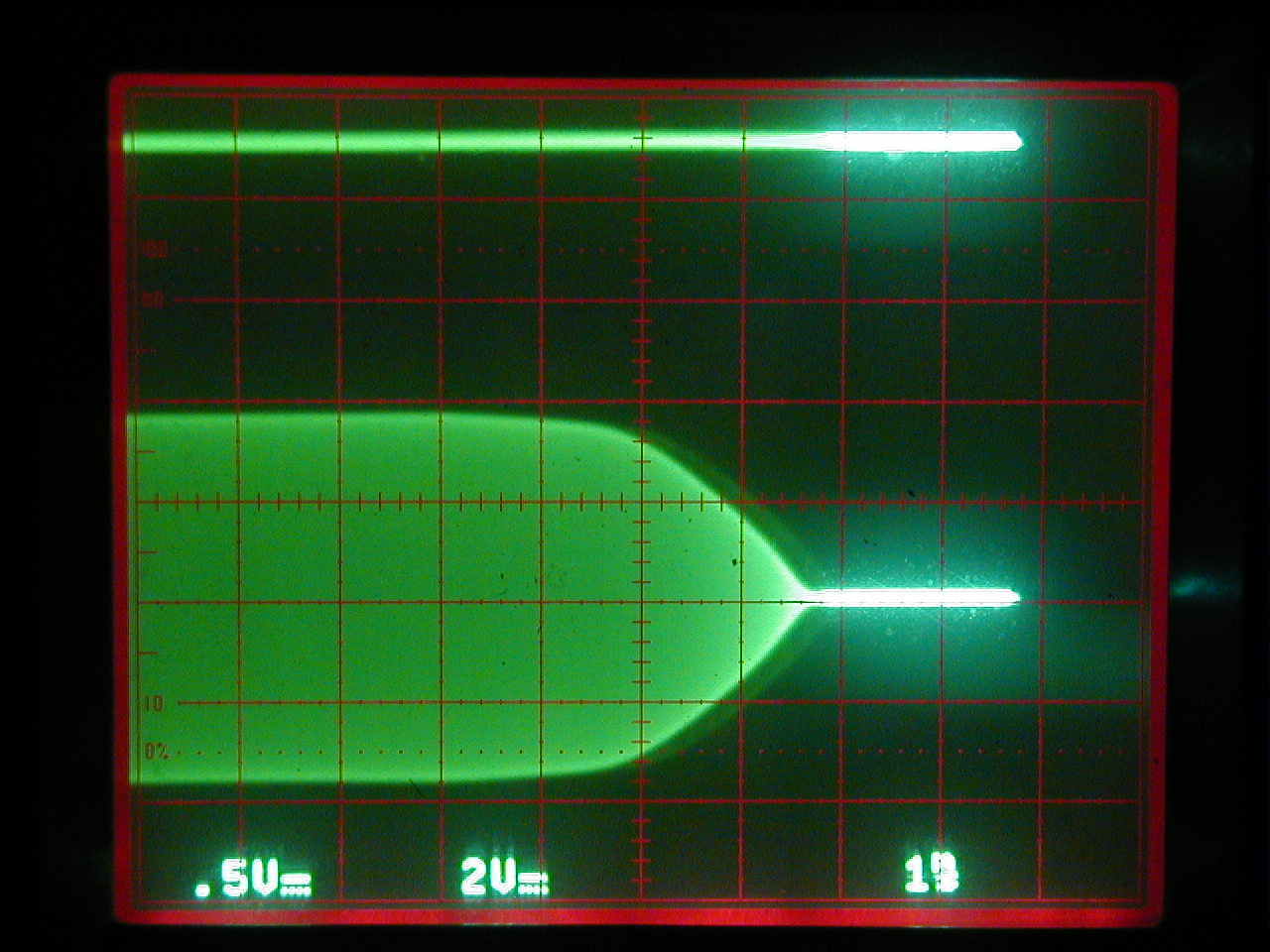

Post-Mod Falling Edge (timbase = 1 ms/div)
